Buat file php baru isinya seperti ini

<?php
// file_get_contents itu Reads entire file into a string
$body = file_get_contents("php://input");
$json_param = json_decode($body,true);

// file_put_contents itu Write a string to a file
file_put_contents("/xtmp/sindhulog",print_r($json_param,true)."\n",FILE_APPEND);
// echo $body;
echo json_encode([
    [
        'T_OrderHeaderID' => $json_param['orderID']
    ]
]);
?>

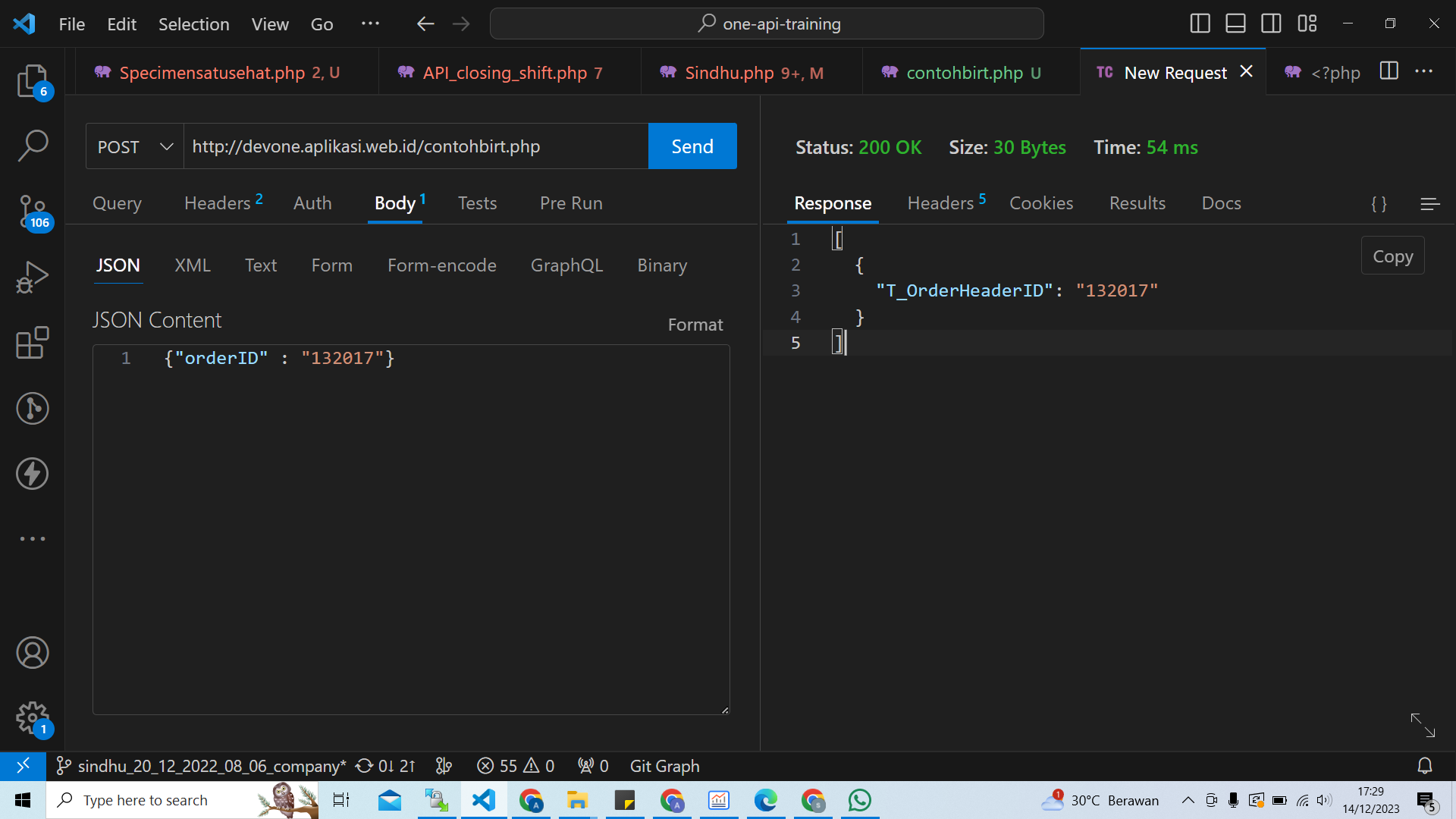

HASIL JSON

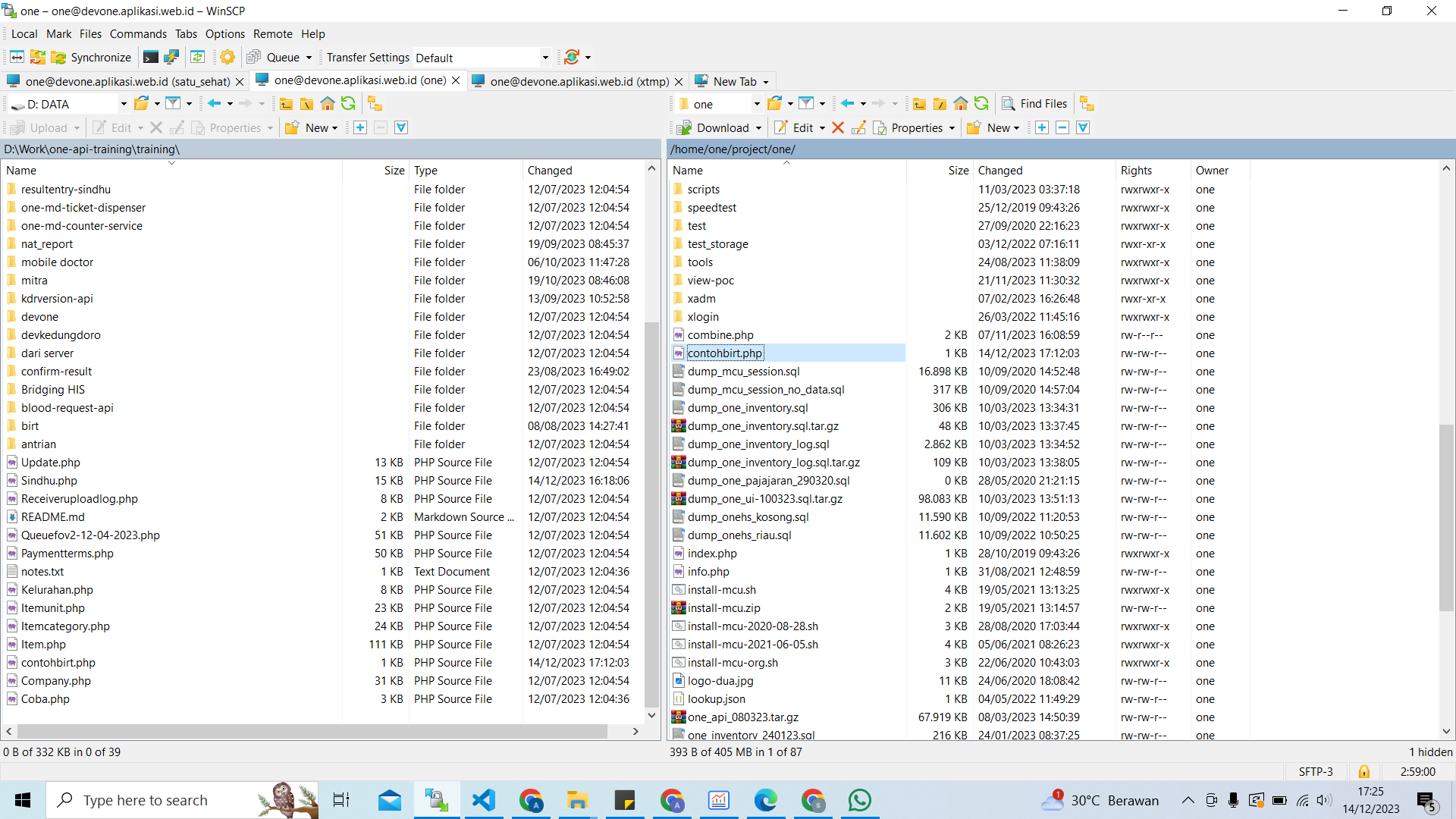

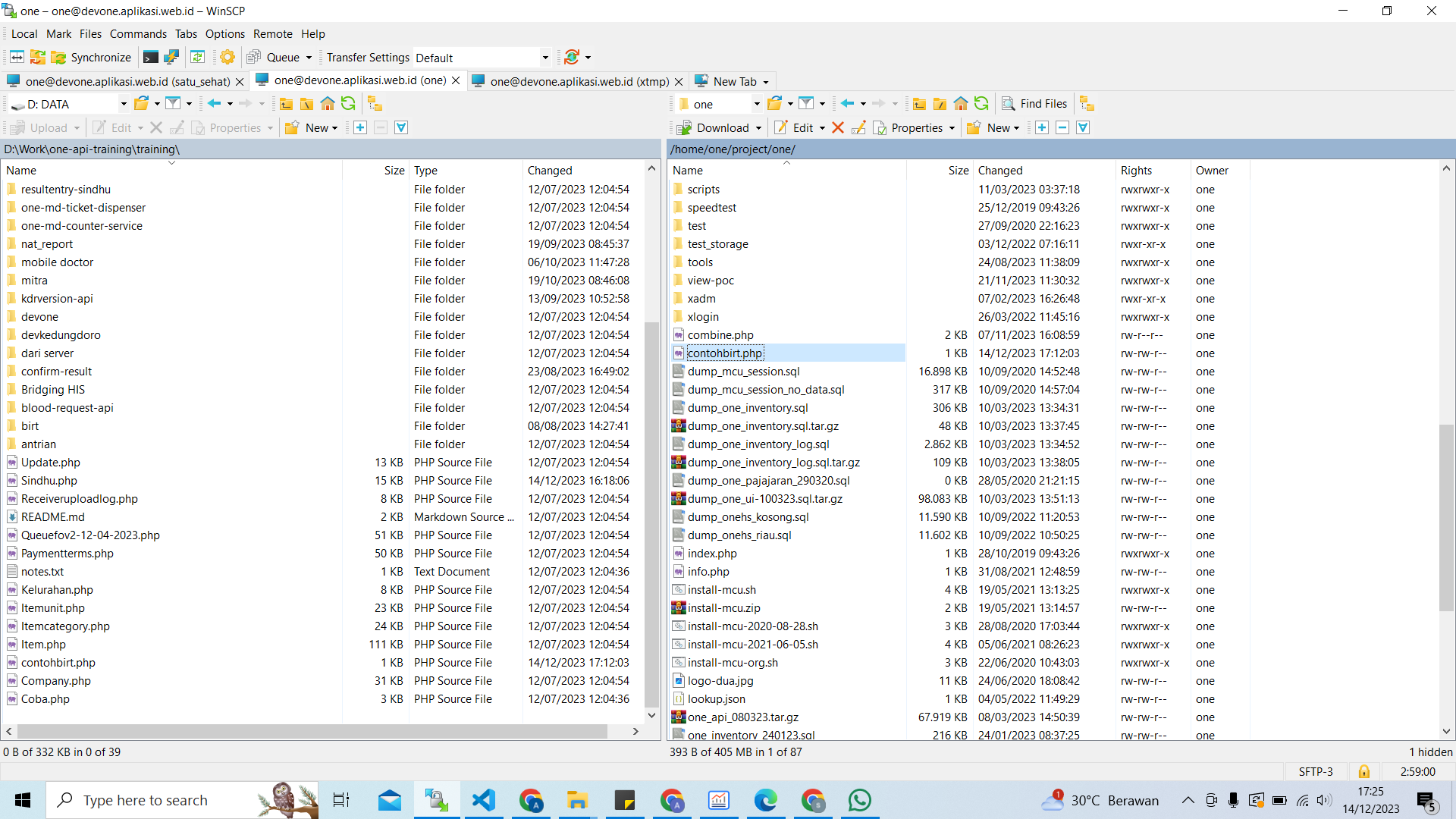

Kemudian Upload file tersebut di server sesuai kebutuhan dalam hal ini di devone

Lalu bikin file baru BIRT scripting data source

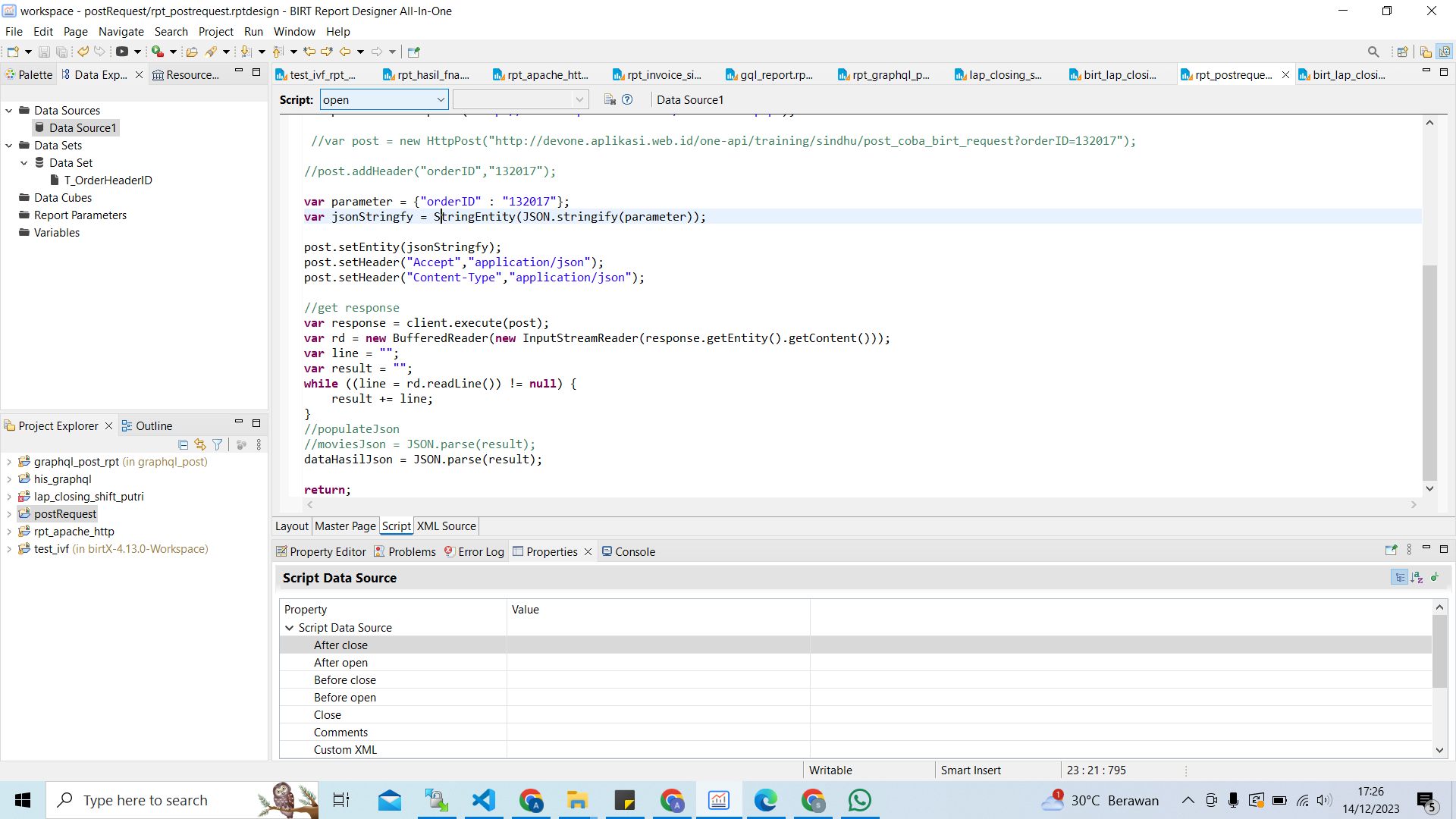

di data source - open tab

code seperti ini

importPackage(Packages.java.io);
importPackage(org.apache.http.impl.client);
importPackage(org.apache.http.client.methods);
importPackage(Packages.java.util);
importPackage(org.apache.http.message);
importPackage(org.apache.http.entity);

//setup end point

//var logId = params["logId"].value;
//var shiftharianid = params["shiftharianid"].value;
//var groupshiftid = params["groupshiftid"].value;
//var rekap = params["rekap"].value;

var client = new DefaultHttpClient();
var post = new HttpPost("http://devone.aplikasi.web.id/contohbirt.php");

 //var post = new HttpPost("http://devone.aplikasi.web.id/one-api/training/sindhu/post_coba_birt_request?orderID=132017");

//post.addHeader("orderID","132017");

var parameter = {"orderID" : "132017"};
var jsonStringfy = StringEntity(JSON.stringify(parameter));

post.setEntity(jsonStringfy);
post.setHeader("Accept","application/json");
post.setHeader("Content-Type","application/json");

//get response
var response = client.execute(post);
var rd = new BufferedReader(new InputStreamReader(response.getEntity().getContent()));
var line = "";
var result = "";
while ((line = rd.readLine()) != null) {
    result += line;
}
//populateJson
//moviesJson = JSON.parse(result);
dataHasilJson = JSON.parse(result);

return;

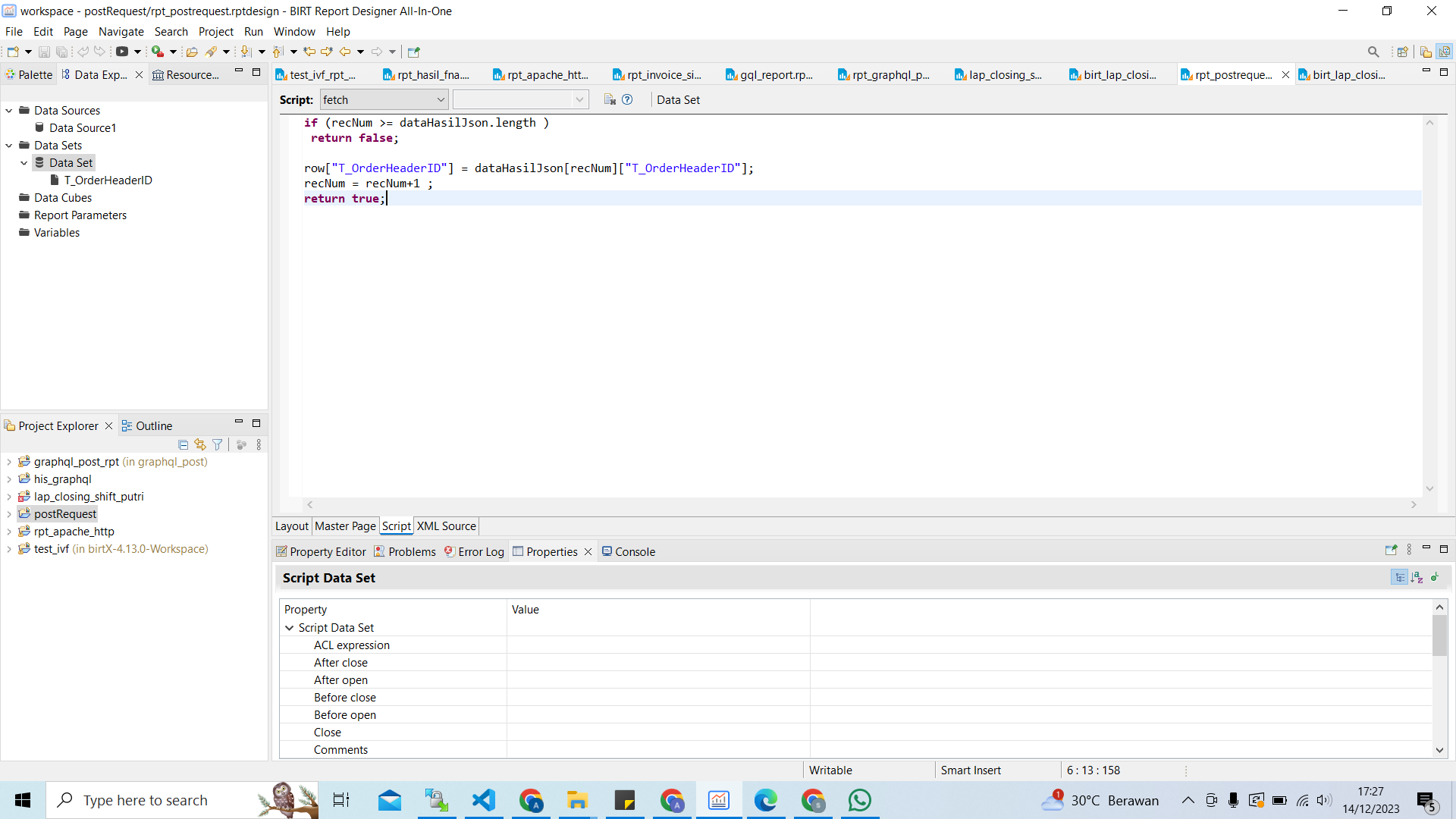

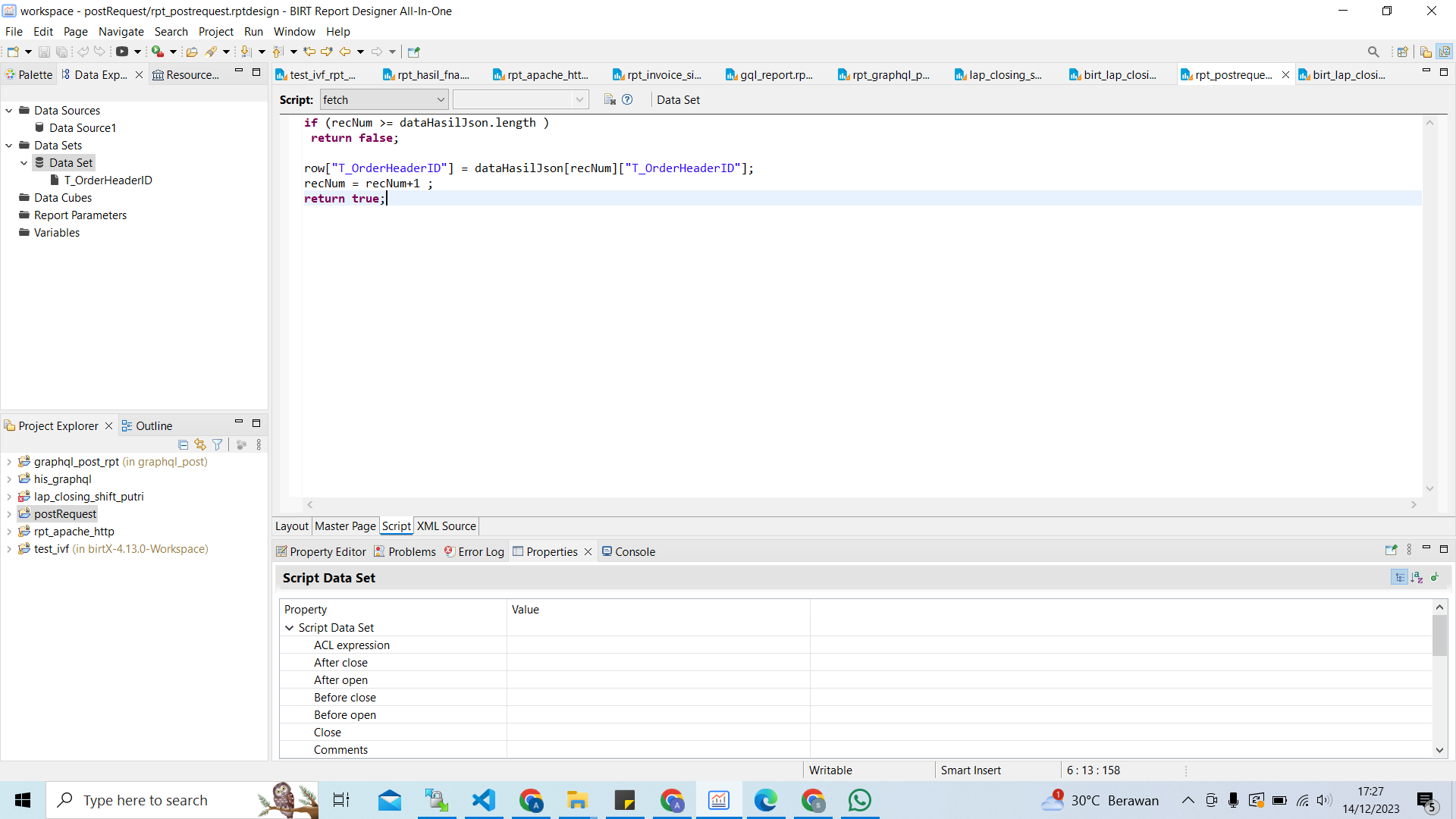

data set - fetch

code seperti ini

if (recNum >= dataHasilJson.length )
 return false;

row["T_OrderHeaderID"] = dataHasilJson[recNum]["T_OrderHeaderID"];
recNum = recNum+1 ;
return true;

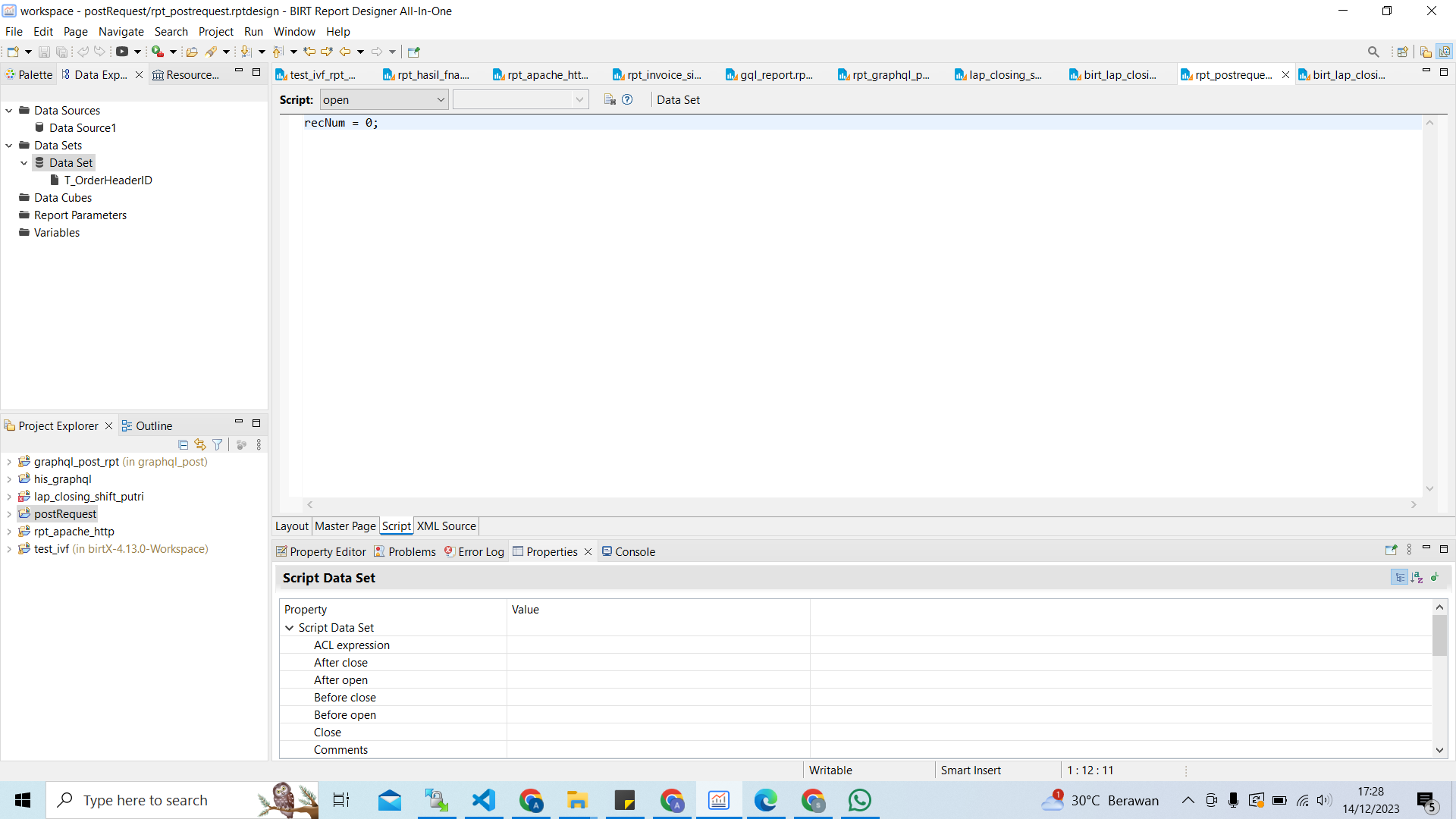

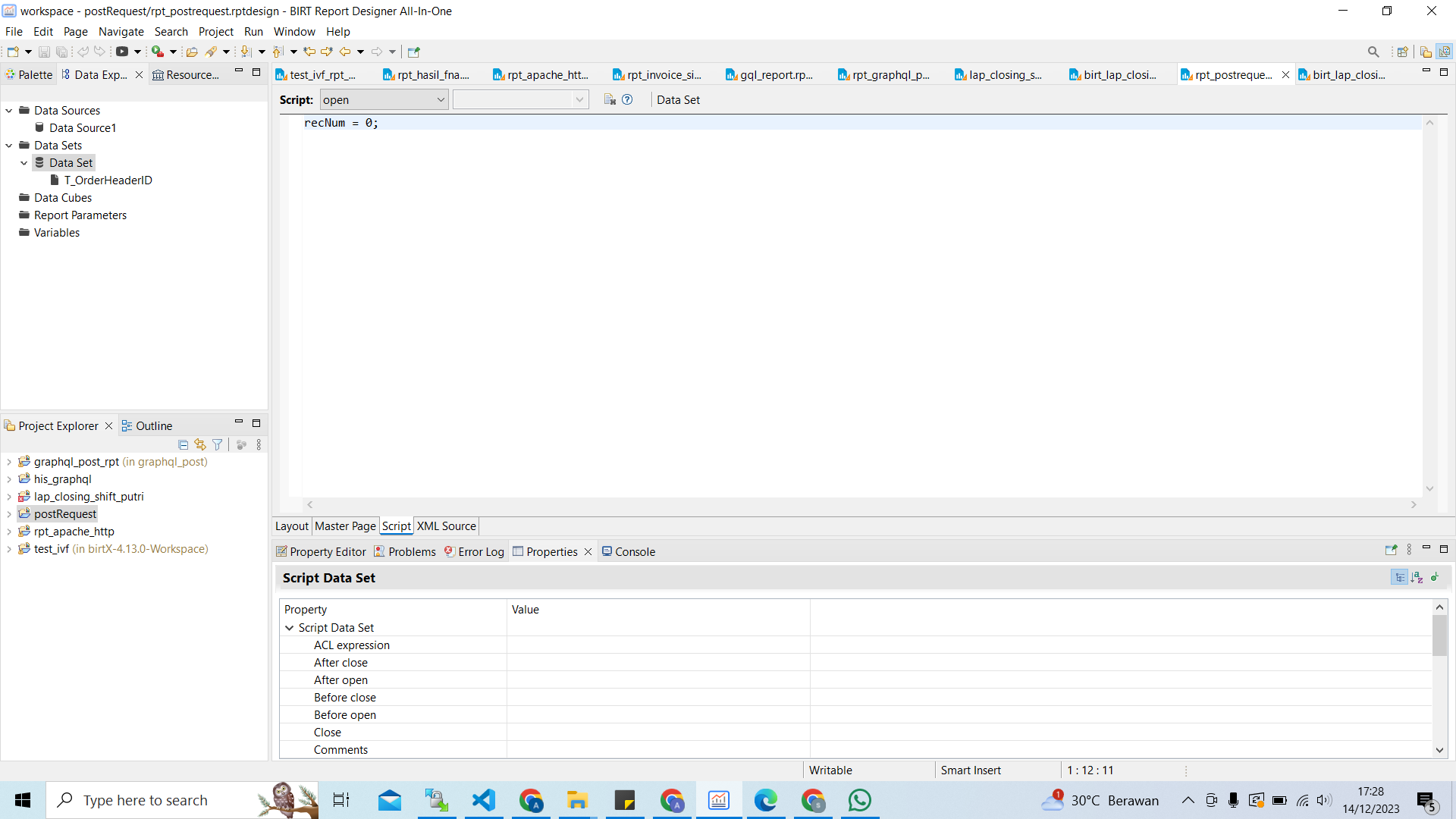

data set - open

recNum = 0;

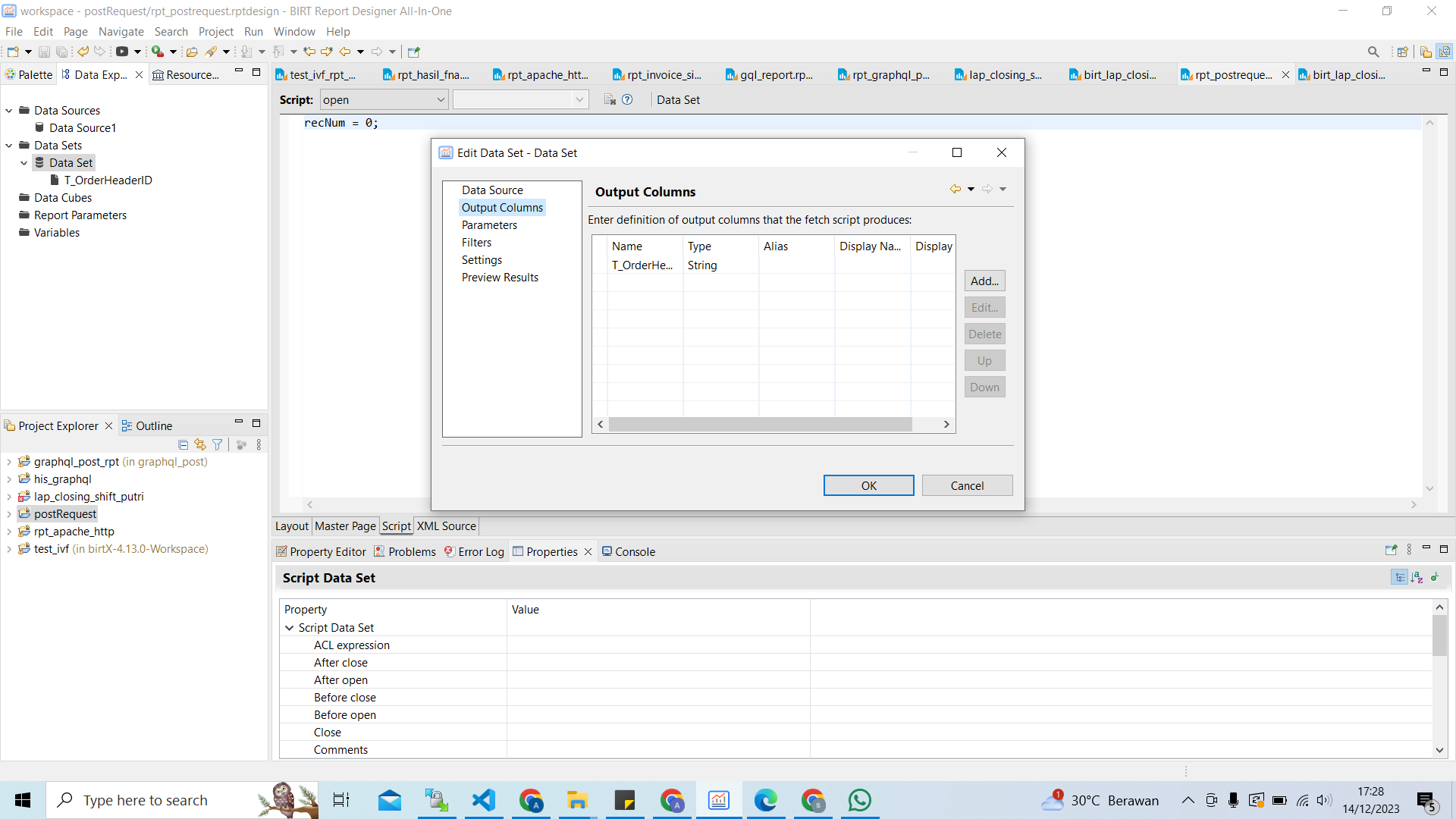

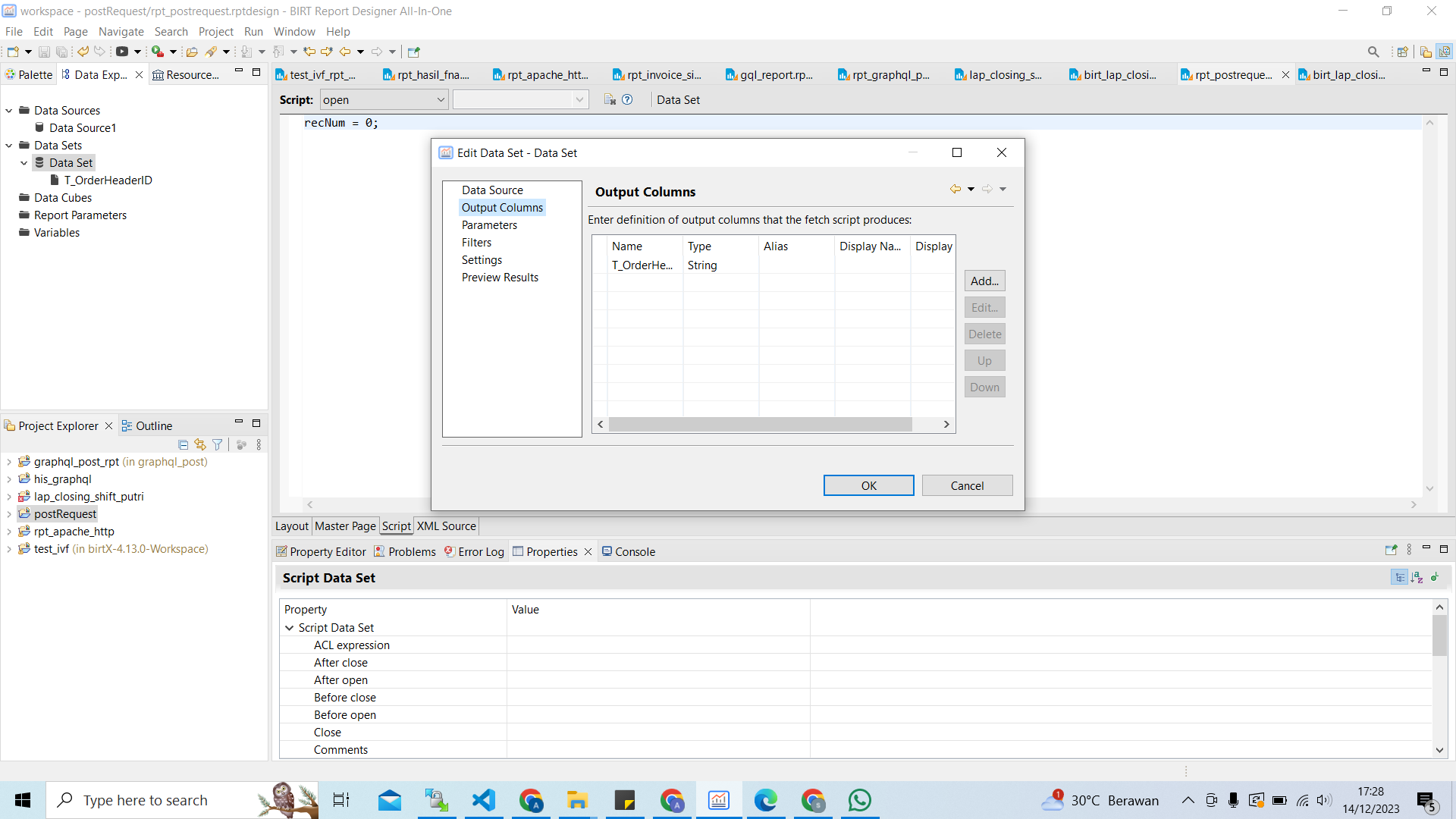

bikin output column

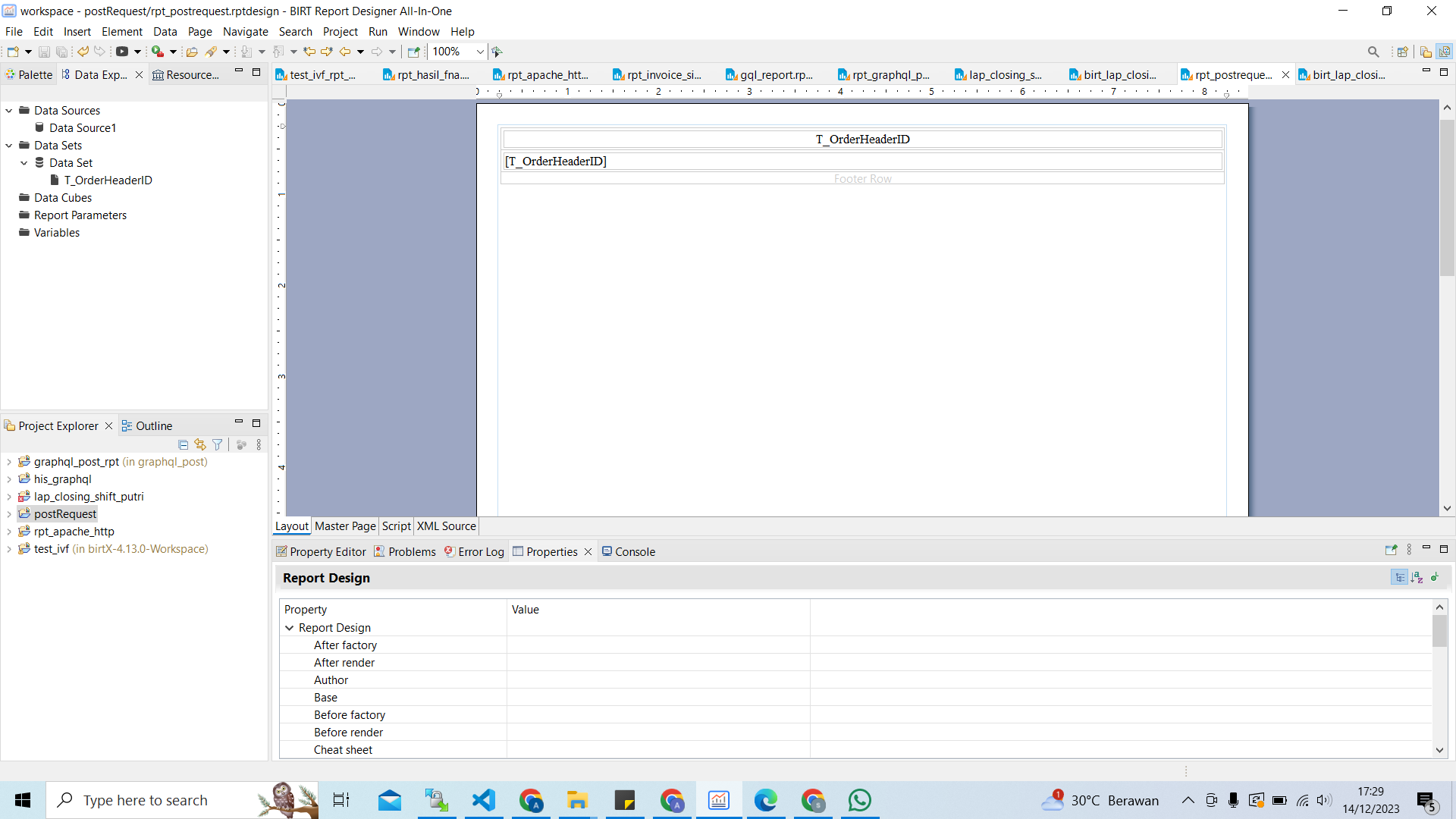

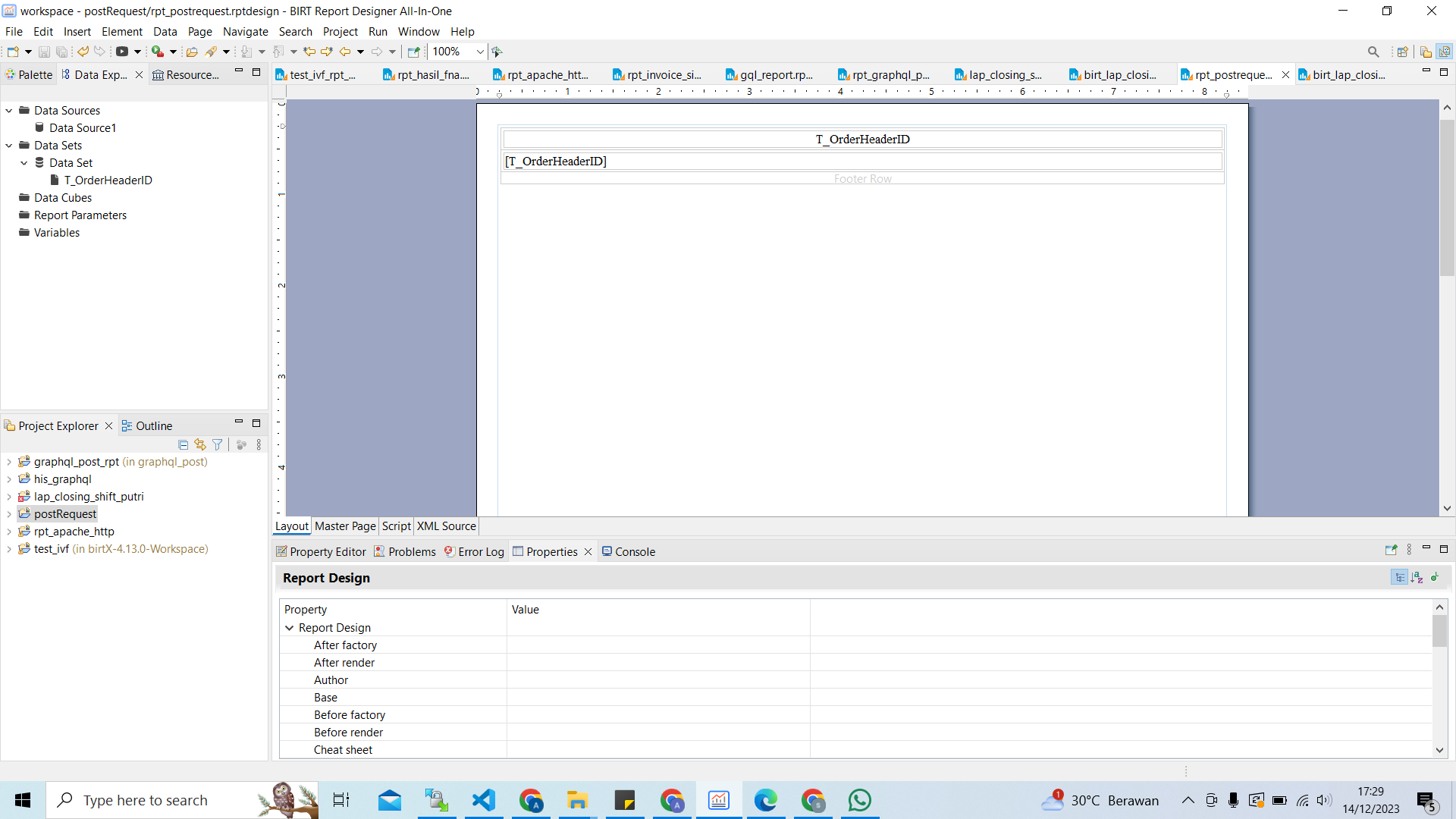

bikin layout sederhana

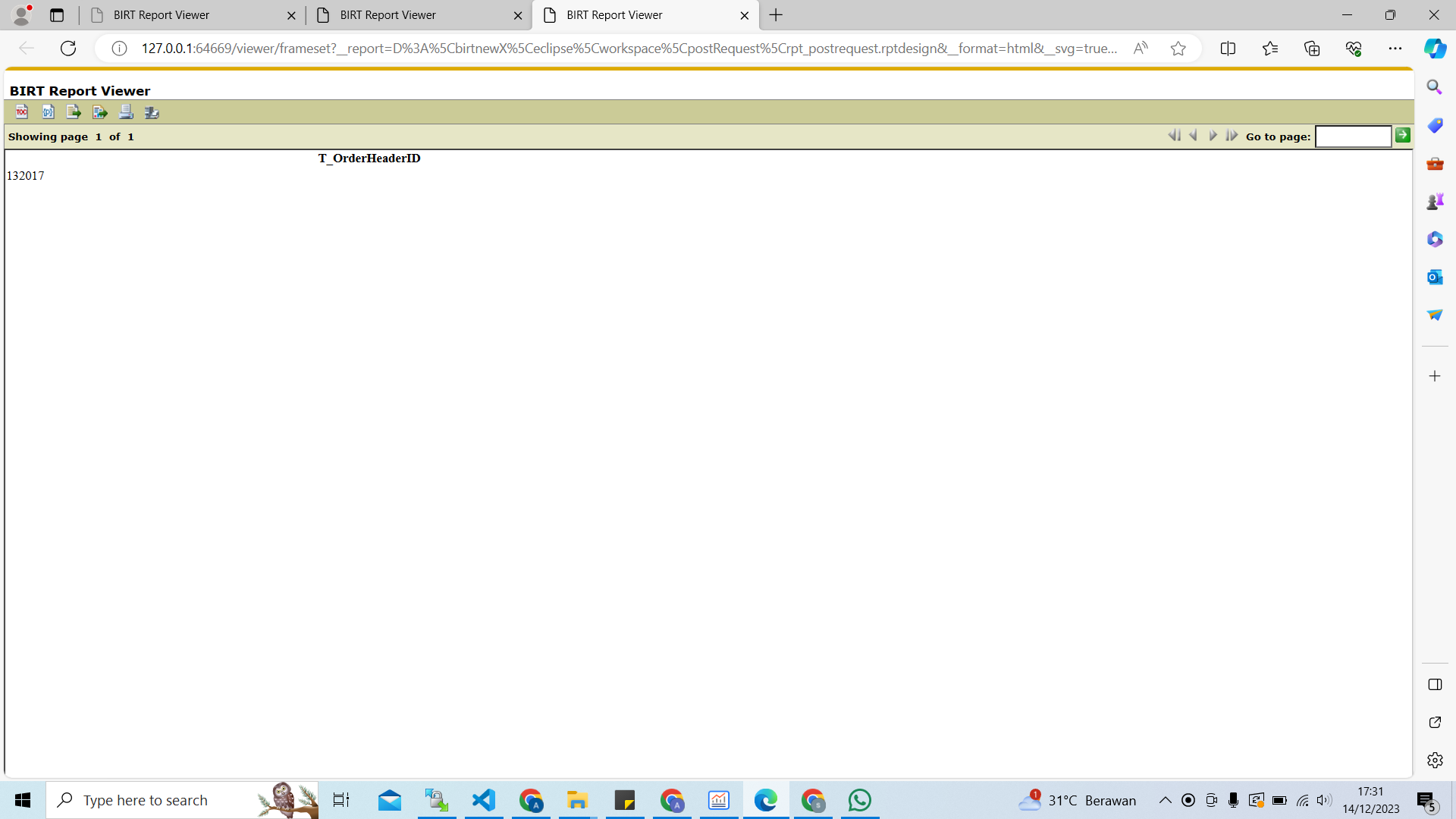

Hasil nya di birt
file hasil akhir
https://drive.google.com/file/d/1DHtq3KkaWoGLwmSufPDEh26-wlBC4hFd/view?usp=sharing
